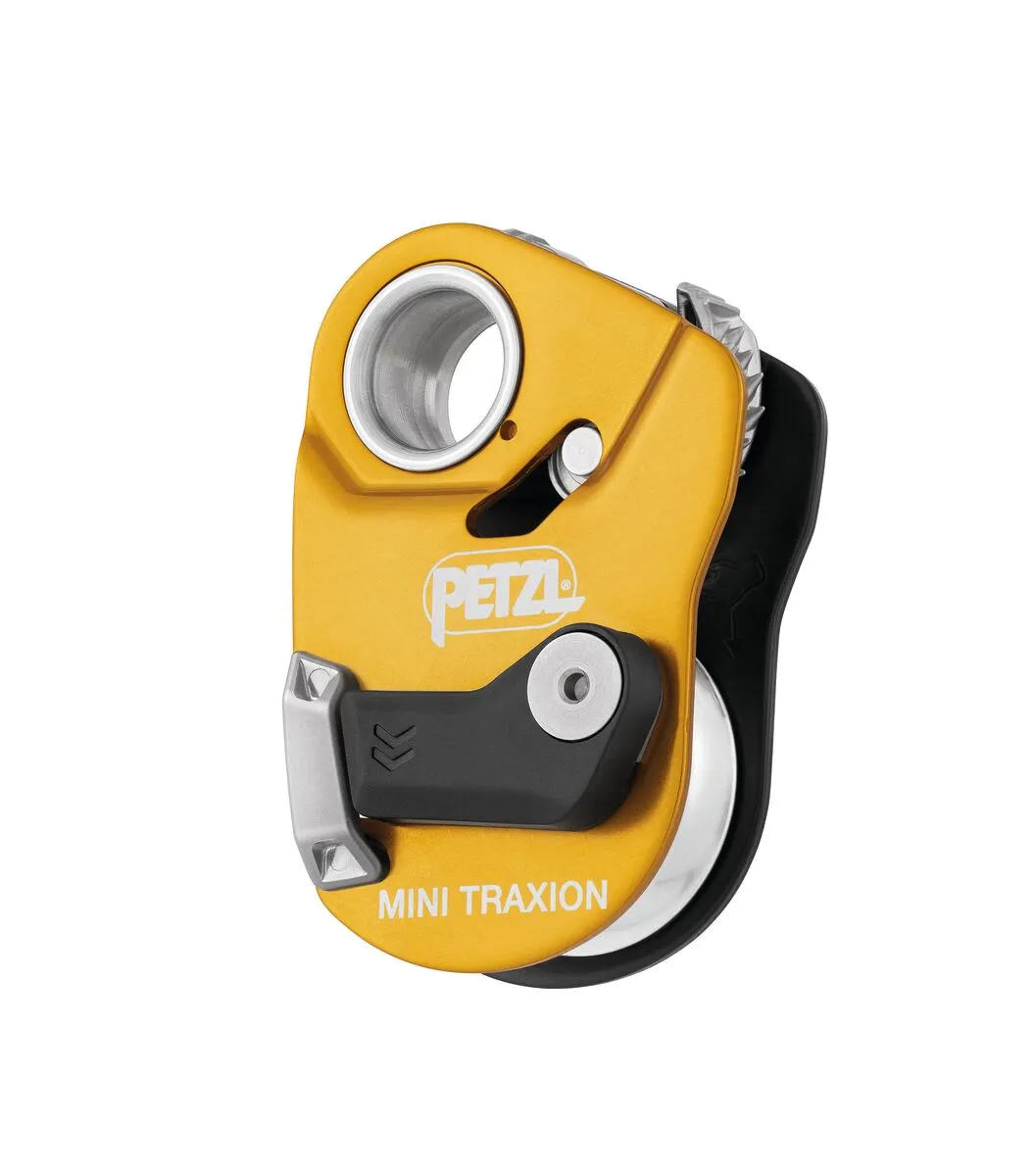

Compact and drop-resistant high-efficiency progress-capture pulley
Possible to open, even when attached to the anchor, the MINI TRAXION progress-capture pulley is designed for setting up haul systems. With a medium-diameter sheave and great efficiency, it is particularly suitable for hauling mid-weight loads. Compact, reducing weight and bulk, which is especially useful during technical rescue and rope access work.
- Drop-resistant and easy to operate:

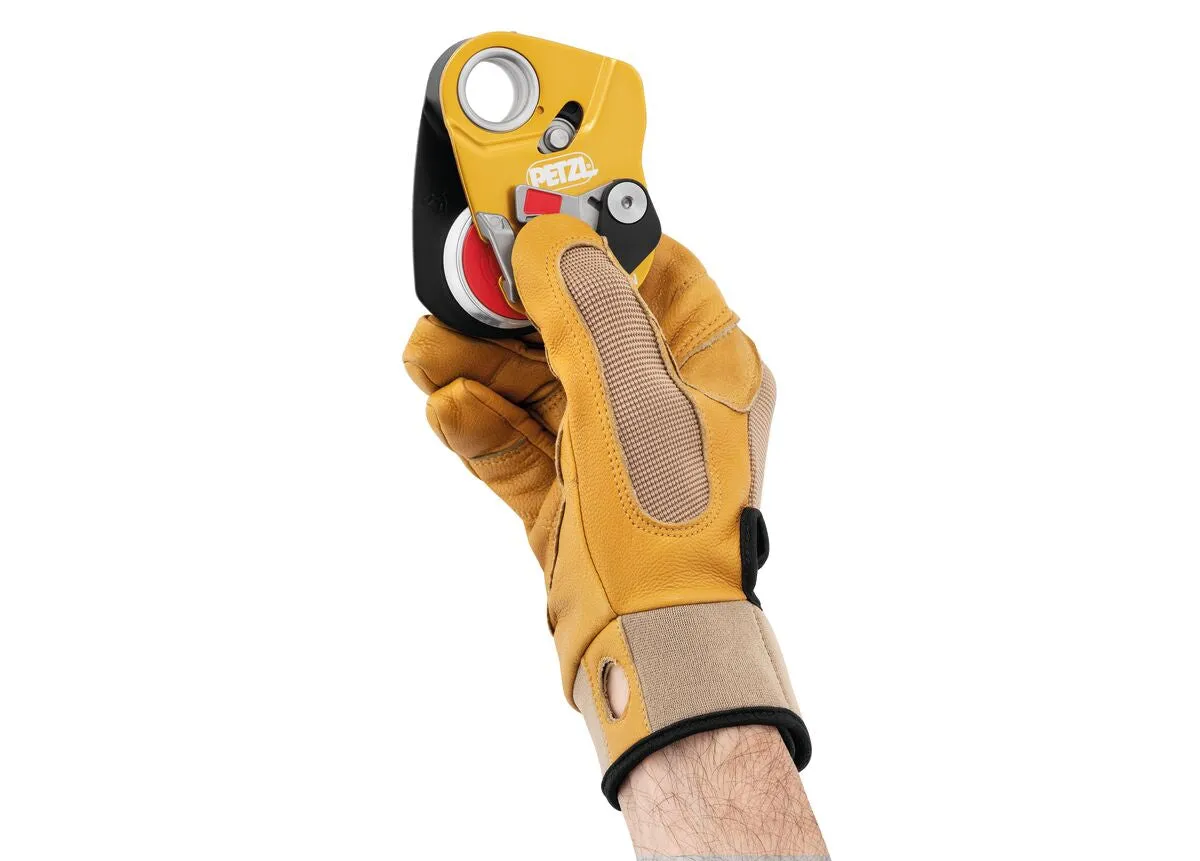

- Triple-action opening of the moving side plate is quick and easy, even with gloves

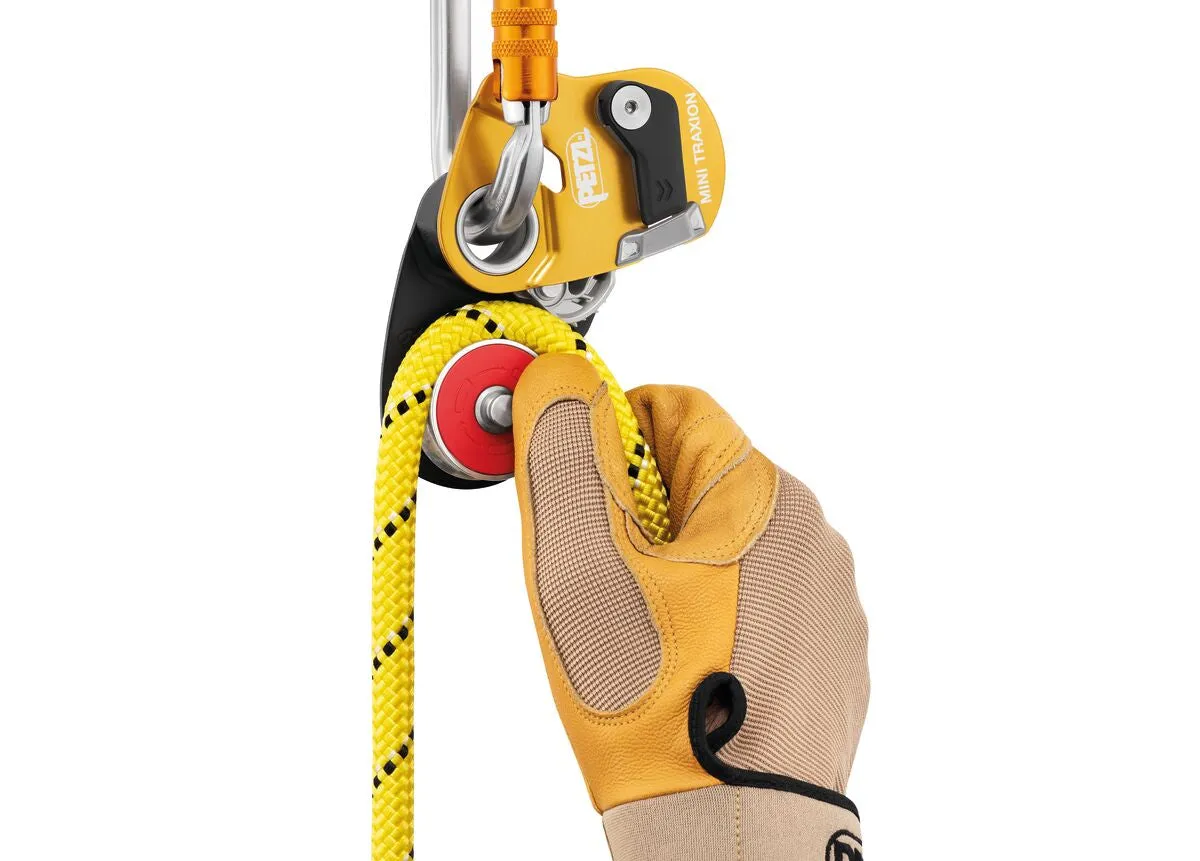

- Rope can be installed when the pulley is connected to the anchor
- Red indicator provides a visual warning when the moving side plate is unlocked
- Special side plate design protects the rope path
- Designed for hauling mid-weight loads:
- Mid-size diameter aluminum sheave mounted on sealed ball bearings for great efficiency
- Versatile:
- Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty
- May be used as a simple pulley by locking the cam in the raised position
- Hole in the cam for installation of a remote control cord
Specifications
- Weight: 150 g

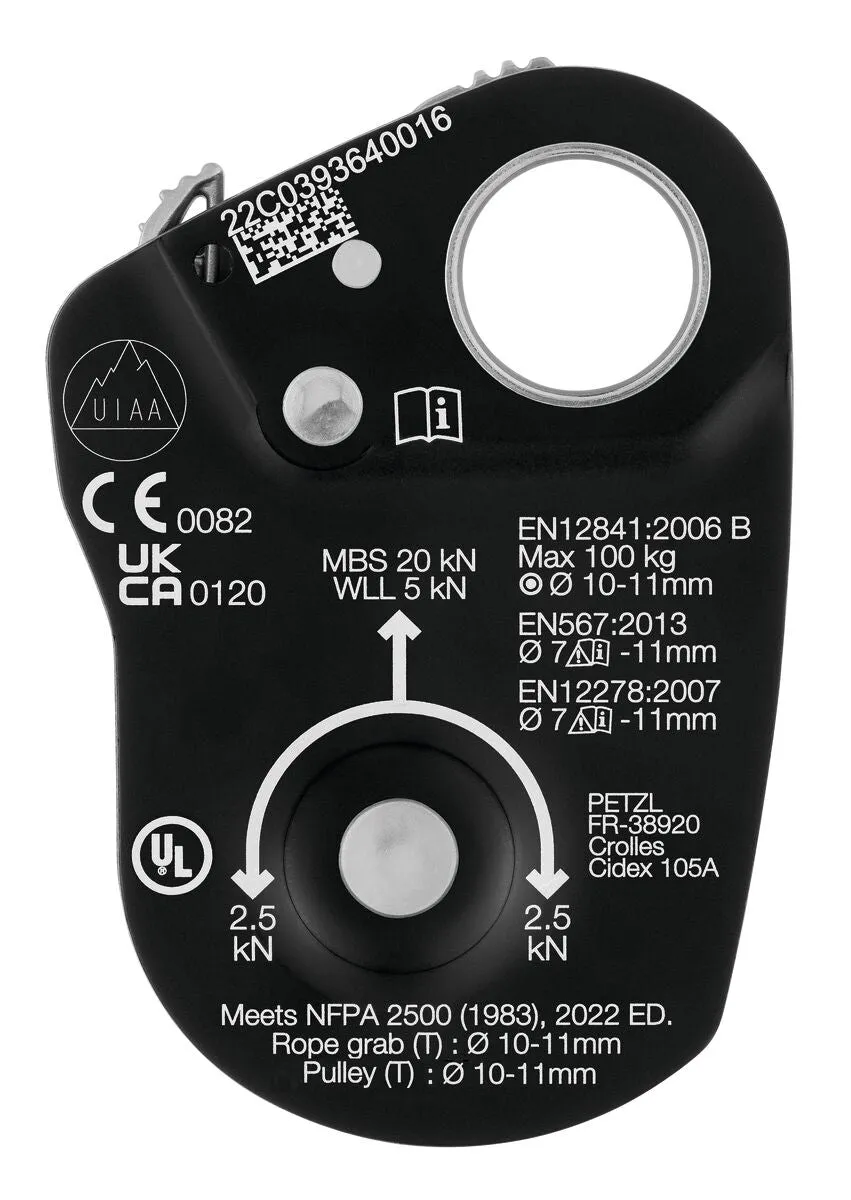

- Certification(s): CE EN 567, CE EN 12278, CE EN 12841 type B, NFPA 2500 Technical Use Pulley and Rope grab, XF 494: FZL-Z-Q 8.5/11, XF 494: FZL-H-Q 8.5/11
- Material(s): Aluminum, stainless steel, nylon
- Min. rope diameter: 7 mm
- Max. rope diameter: 11 mm
- Sheave type: Sealed ball bearings
- Sheave diameter: 32 mm
- Breaking strength - pulley: 10 kN x 2 = 20 kN
- Breaking strength - rope clamp: 4 kN
- Efficiency: 93 %
References
| References | P054AA00 |
|---|---|
| Guarantee | 3 years |
| Inner Pack Count | 1 |
| Price | $159.95 |
